    A6500-SR Emerson System Rack

    Ask Lasest Price
    Brand Name : Emerson EPRO
    Model Number : A6500-SR
    Certification : CO
    Price : $1300
    Payment Terms : T/T
    Supply Ability : 10 Piece per a day
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    A6500-SR Emerson System Rack

    A6500-SR Emerson System Rack


    Product Details:


    Brand NameEmerson
    ModelA6500-SR
    Ordering informationA6500-SR
    CatalogCSI6500
    OriginGermany
    Dimension16*16*12cm
    Weight1kg
    HS Code8537101190
    PaymentT/T
    Sales Price$1300
    Warranty12 months
    Lead time3-5 work days


    Additional Information:


    Features
    Number of Measurement Card Slots (A6500-UM and A6500-TP)11 (each slot 6HP)
    Number of Relay Card Slots1 (each slot 10HP)
    Number of COM Card Slots2 (each slot 4HP, redundant)


    Description:

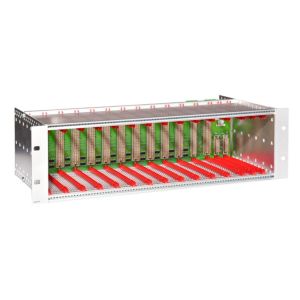

    The A6500-SR System Rack is part of the AMS 6500 ATG machinery protection system. It is a 19” rack (84HP width and 3RU height). The System Rack allows you to install up to 11 protection cards (two channel A6500-UM Universal Measuring Card and/or four channel A6500-TP Temperature Process Cards), one A6500-RC Relay Cards, and one A6500-CC Com Card — two Com Cards for redundant communication.



    Each of the 11 slots for protection cards has four eight-pole spring cage connectors for connecting several sensor types (eddy current sensors, piezoelectric sensors, seismic sensors, RTDs, etc.), binary inputs, binary outputs (function outputs), current outputs, and pulse outputs. The available number of measuring channels and all other functions depend on the installed cards.



    Datasheet Link:Emerson A6500-SR.pdf
