    F8652X HIMA Central Module

    Ask Lasest Price
    Brand Name : F8652X HIMA Central module
    Model Number : F8652X
    Certification : CO
    Price : $6000
    Payment Terms : T/T
    Supply Ability : 10 Piece per a day
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

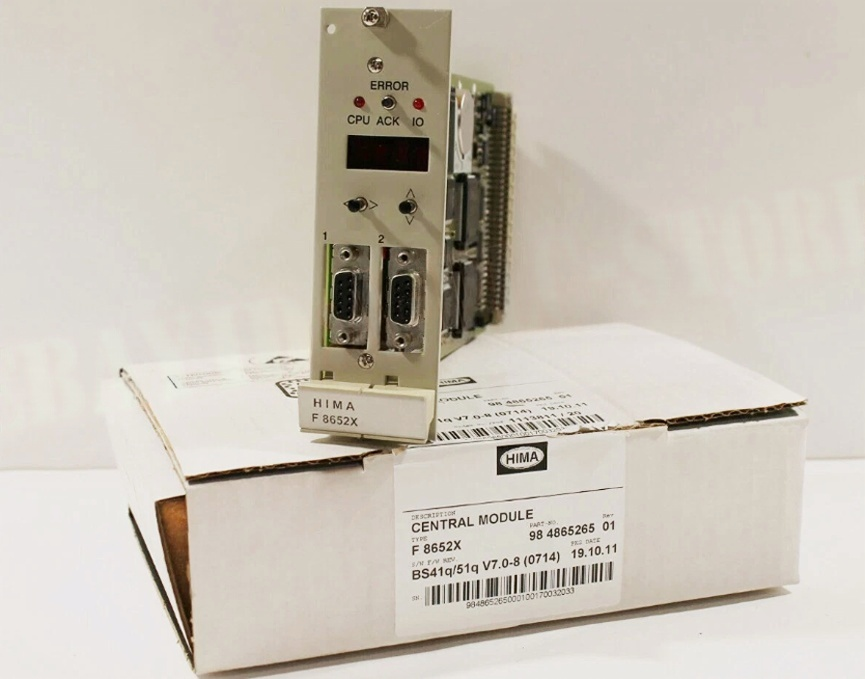

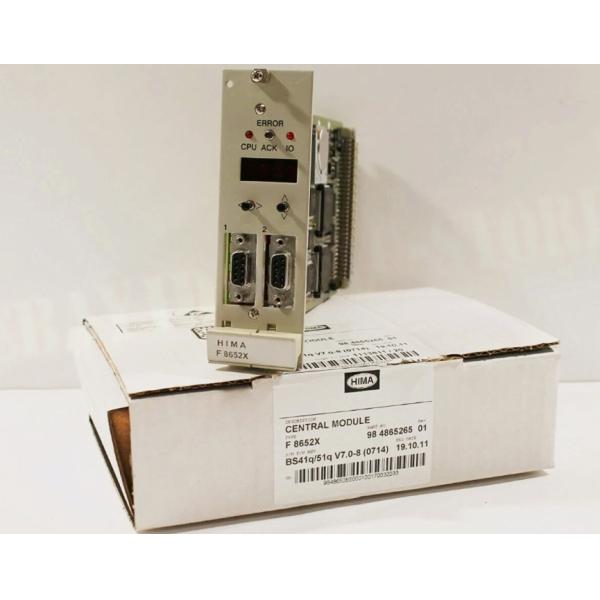

    F8652X HIMA Central Module

    F8652X HIMA Central Module


    Product Details:


    Brand NameHIMA
    ModelF8652X
    CatalogHIQUAD
    OriginUnited States (USA)
    Dimension16*16*12cm
    Weight1kg
    HS Code8537101190
    PaymentT/T
    Sales Price$6000
    Warranty12 months
    Lead time3-5 work days


    Additional Information:


    Features
    High integration
    Orthogonality of phase and amplitude control
    Advanced Serial Peripheral Interface (SPI) with 4-state memory
    Superior channel-to-channel isolation
    Minimal footprint
    14GHz to 16GHz operation
    Integrated proportional-to-absolute temperature (PTAT) sensor with external biasing
    -40°C to +95°C internal temperature sensor


    Description:


    Central module with two clock-synchronised operating micro processors.


    Microprocessor (2x) Type INTEL 386EX, 32 bits


    clock frequency 25 MHz


    Memory per microprocessor (5 ICs each)


    operating system Flash-EPROM 1 MByte


    user’s program Flash-EPROM 512 kByte


    data store sRAM 256 kByte


    Interfaces 2 serial interfaces RS 485


    Diagnostic display 4 digit matrix display with requestable


    information


    Error switch off Fail-safe watchdog with output


    24 V DC, loadable up to 500 mA,


    short circuit proof


    Construction 2 PCBs in European standard


    1 PCB for the circuits of the


    diagnostic display


    Space requirements 8 TE


    Operating data 5 V=: 2000 mA
